New Bluetooth 5.3 Low Energy (LE) module from Panasonic with LE audio

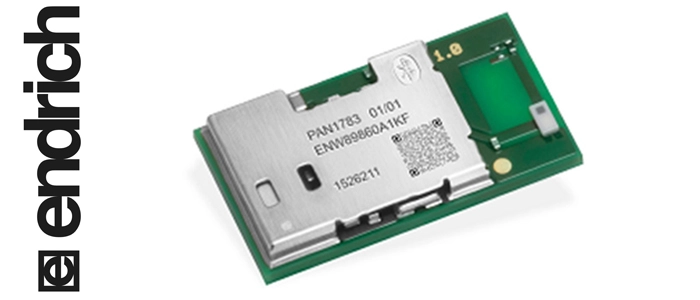

Panasonic's PAN1783 is a Bluetooth 5.3 Low Energy (LE) module. At its core is the Nordic nRF5340 single-chip controller. The module is available with either an on-board chip antenna or an RF bottom pad. The module uses the functions of Bluetooth 5.3, including isochronous channels and LE audio, and supports a high throughput of 2 Mbps, advertising extensions and long-range communication. It integrates the extensive functions of the nRF52 series and improves performance and memory while maintaining low power consumption.

Equipped with two Cortex®-M33 processors, the PAN1783 can be operated in stand-alone mode, eliminating the need for an external processor. This complexity reduction saves space and cost. One processor serves as an application processor with 128 MHz or 64 MHz, with 512 kB RAM and 1 MB embedded flash memory, and the other serves as a network processor with 64 MHz, 64 kB RAM and 256 kB flash.

In addition, the PAN1783 supports Bluetooth direction finding with Angle of Arrival (AoA) and Angle of Departure (AoD) functionality. It also offers Type 2 Near Field Communication (NFC-A) support for simplified pairing and payment solutions, with an external antenna required for NFC functionality.

With improved sensitivity and LE-coded PHY, the PAN1783 is particularly suitable for computer peripherals, I/O devices, advanced wearables and wireless audio devices. Its ultra-low power consumption makes it a good choice for battery-powered applications. The module is certified according to CE RED, FCC, ISED, MIC and RCM.

Further information can be found at https://www.endrich.com/en/product-categories/wireless-modules-gps-and-gnss/bluetooth---wifi/pan1783a-bluetooth-r-low-energy-module-v5-3
