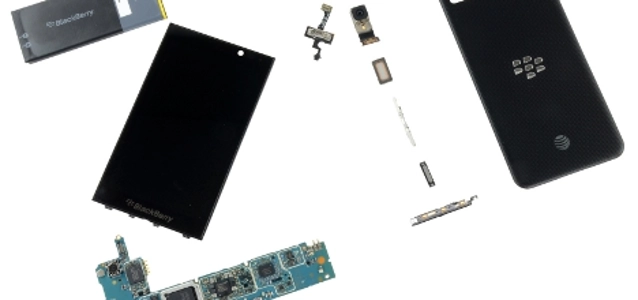

A teardown of a BlackBerry Z10

We heard that BlackBerry loyalists were hesitant to make the leap to a buttonless smartphone with a drastically shorter battery life. But with an ultra-responsive touchscreen and easily swappable battery, the Z10 will play Angry Birds all the way to Taiwan, and still bust an E.T. and phone home. Despite its poor reception among critics, the BlackBerry Z10 is proof that smartphones can be thin, easily-repairable, and have replaceable batteries. All these traits yield an 8 out of 10 repairability score, something we havent seen in a smartphone for a while. Teardown highlights: Removing the rear case simply requires prying a few clips around the perimeter of the Z10. Easy peasy. The rear panel contains an integrated NFC antenna, similar to the antenna found in the Samsung Nexus S. It's a relief to see a smartphone in this day and age with a removable battery. With the right accessory, you even have the option of charging your phone as well as a spare battery at the same time--perfect for the 15 hour flight to Taipei. The 3.8 V, 1800 mAh Lithium-ion battery allows for up to 10 hours of talk time on 3G with up to 13 days standby time. If you're wondering how the BlackBerry Z10 stacks up to its competitors, wonder no more: the Nexus 4 uses a 3.8 V, 2100 mAh battery with over 10 hours of talk time, while the iPhone 5 is equipped with a 3.8 V, 1440 mAh with up to 8 hours of talk time on 3G.

© iFixit

Absolutely zero adhesive holding down this motherboard. We'll say that again. Absolutely NO ADHESIVE. Wonderful. The rear-facing camera is dispatched from the motherboard with ease. The 8 megapixel auto-focus camera has a 5-element, f/2.2 lens, with a dedicated ISP (image signal processor) with a 64 MB frame buffer. The "backside illumination" sensor increases the amount of light captured, greatly improving low-light performance. The display assembly is held in place with several smaller-than-usual screws (T2 Torx) and just a few light adhesive strips--no match for our prying experts. The display unit is ultra thin, a feat achieved by some serious fusing. The digitizer is applied directly to the glass and fused in turn to the LCD. The downside to this design decision: shattering the glass means losing all touchscreen capabilities. A drop from ear-height on concrete spells death. The digitizer cable is home to the Synaptics Clearpad 3203 Capacitive Touchscreen Controller, which manages all the snazzy Z10 gestures. While major components come out of the BlackBerry Z10 without much fuss, once you get down to the small case peripherals, things get a little more dicey. The headphone jack, power switch, ambient light sensor, and earpiece speaker housing are built into a single assembly, held in place with some tough adhesive.

© iFixit

A few of the major ICs found on the motherboard:

• Samsung KLMAG2GE4A 16 GB MLC NAND Flash + Controller
• Avago ACPM-7051 Quand-Band GSM/EDGE and Dual-Band UMTS (B1/B5) Power Amplifier
• Inside Secure SecuRead 972-DC-C6 NFC Solution Module
• Qualcomm WCD9310 Audio Codec
• ST Microelectronics LIS3DH 3-axis MEMS Accelerometer
• STMicroelectronics LSM330DLC 3D Accelerometer & 3D Gyroscope
• Samsung K3PE0E000A XG 2 GB Mobile DDR2 SDRAM + Qualcomm MSM8960 Snapdragon S4 Baseband/Applications Processor
• Qualcomm PM8921 Power Management IC
• Qualcomm RTR8600 Multi-band/mode RF transceiver
• Texas Instruments WL1273L Wireless Module (802.11a/b/g/n, WLAN, Bluetooth, and FM)
• TriQuint TQP6M9017 Dual-Band WLAN Module
• RF Micro Devices RF7252 Linear Power Amplifier Module
• Avago ACPM-5017 LTE Band XVII Power Amplifier

And as always, you can find the entire teardown here.
