In the context of automotive thermal management rapidly evolving toward higher voltage, higher integration, and higher reliability, the electronic water pump—often regarded as the “heart” of the thermal system—has a direct impact on vehicle safety and energy efficiency due to its operational stability.

However, many OEMs and Tier 1 suppliers are currently facing a dual challenge in both supply chain and technology. For a long time, the high-end automotive solid-liquid hybrid capacitor market has been dominated by Japanese brands. This has not only led to consistently high unit costs, but also resulted in long lead times, unstable production capacity, and tight supply availability. These issues have significantly constrained project delivery and cost control.

As a professional capacitor manufacturer, Shanghai Yongming Electronic Co., Ltd. (hereinafter referred to as YMIN) leverages its independent R&D capabilities to launch three product series—VHT, VHU, and VHR solid-liquid hybrid capacitors—specifically designed for the demanding operating conditions of automotive electronic water pumps. These products are engineered to fully match leading Japanese brands in terms of performance, packaging, and reliability, enabling true pin-to-pin replacement.

At the same time, supported by YMIN’s stable production capacity and robust supply chain system, the company provides customers with a reliable alternative featuring “equivalent performance and more stable delivery.”

I. Core Technology: Three Series Target the Root Causes of Electronic Water Pump Failures

Automotive electronic water pumps typically operate in high-vibration environments such as the engine bay or chassis, and under wide temperature ranges (-55°C to +150°C). Conventional capacitors often suffer from issues such as low-temperature capacitance degradation leading to cold-start noise, as well as structural failure under high-temperature vibration conditions.

YMIN’s three product series are designed from the ground up to address these challenges at their source:

Wide-temperature dual-dielectric technology: The VHT (-55°C to +125°C), VHU (-55°C to +135°C), and VHR (-55°C to +150°C) series provide a three-level temperature range coverage. With extremely low capacitance loss at low temperatures, they ensure silent and stable pump startup even in severe cold conditions.

Ultra-low ESR and wide-frequency stability: All series achieve ESR as low as 0.020 Ω (at 100 kHz), supporting high ripple current tolerance. They maintain consistently low impedance across different frequencies, enabling rapid response to load changes and ensuring stable electrical performance of the water pump.

Vibration-resistant structural design: Built with high-strength anti-vibration materials and an internal core fixation process, the products inherently withstand 10G vibration testing. When combined with an optional reinforced anti-vibration base plate, they can withstand up to 30G extreme vibration, effectively eliminating structure-related failures caused by mechanical stress.

II. Product Core Positioning: Seamless Replacement of Japanese Brands Without Performance Compromise

Pin-to-pin compatibility: The mechanical dimensions, pin configuration, and footprint are fully compatible with mainstream Japanese specifications. No PCB redesign is required, enabling fast and low-risk design-in.

No compromise in performance: Key parameters, including ESR, temperature resistance, ripple current handling, and service life, match or even exceed those of comparable Japanese products in the same class.

Supply chain reliability with zero risk: With localized independent manufacturing, YMIN ensures controllable lead times and stable delivery, effectively eliminating supply insecurity and shortage risks commonly associated with Japanese-brand sourcing.

III. Precise Selection: Full Coverage of 10G/30G Vibration Resistance and 25V–50V Wide Voltage Adaptation Across Vehicle Platforms

According to official specifications, the three series provide clearly defined vibration resistance grades of 10G and 30G, ensuring adaptability to different vehicle reliability requirements. At the same time, they cover a wide voltage range from 25V to 50V, with the 50V specification specifically developed for commercial vehicle applications.

This configuration enables full coverage from standard passenger vehicles to high-demand scenarios such as pure electric off-road platforms and commercial vehicles, ensuring consistent reliability across diverse operating conditions.

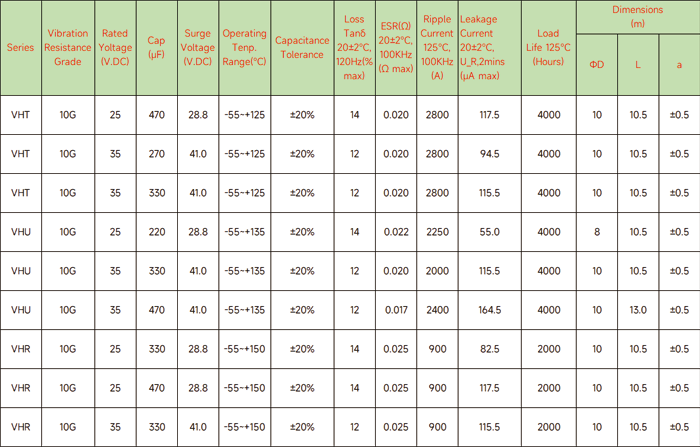

10G vibration-resistant grade products

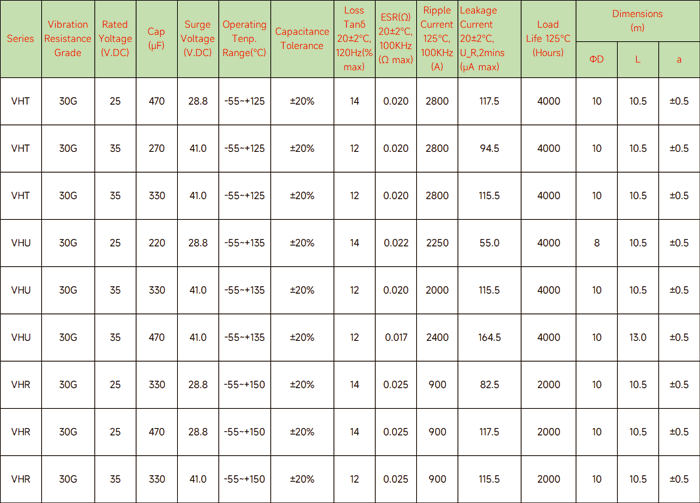

30G Vibration Resistance Grade Products

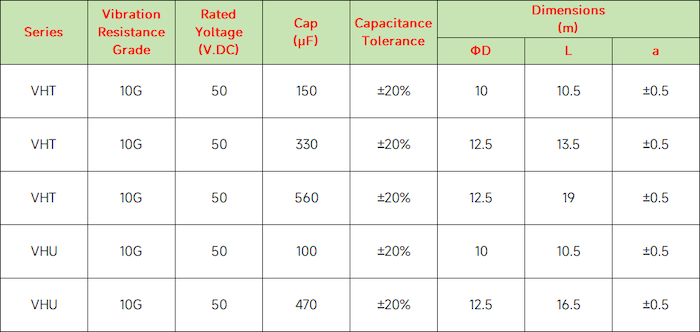

50V Rated Products

IV. Real Application Case: Electronic Water Pump for a New Energy Vehicle

Pain Point Scenario:
The water pump experienced early failure under high- and low-temperature cycling as well as continuous vibration. Noticeable abnormal noise occurred during cold startup, leading to the risk of thermal management imbalance.

Root Cause:
Traditional capacitors suffered from excessive capacitance reduction at low temperatures (capacitance loss), high ESR, and weak vibration-resistant structures.

YMIN Solution:

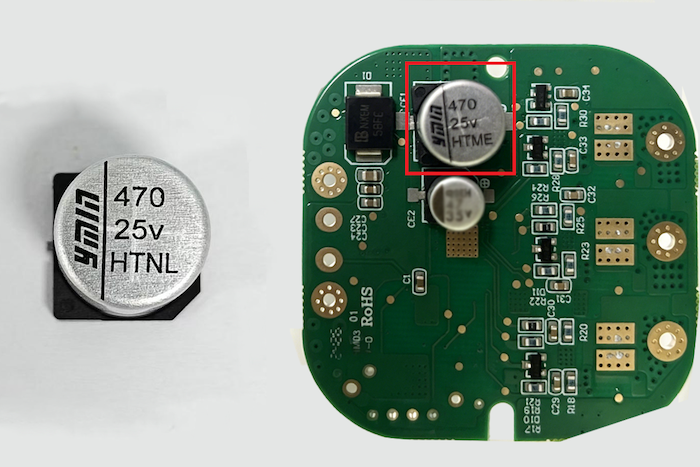

Selected model: VHT 25V 470μF 10×10.5

Results:

• Eliminated cold-start abnormal noise:

Benefiting from dual-dielectric technology and ultra-low ESR (0.020Ω), the water pump responded quickly and operated without noise throughout the entire process.

• Passed 10G vibration testing:

With internal core fixation and high-strength materials, no structural failure occurred.

• Stable output across a wide temperature range:

Electrical performance fluctuation remained extremely low within the -55℃ to +125℃ range.

V. Certifications and Delivery: Performance on Par with Japanese Brands, with Superior Supply Assurance

The YMIN’s VHT, VHU, and VHR series solid-liquid hybrid capacitors have obtained international certifications including AEC-Q200, RoHS, REACH, and ELV. At the same time, YMIN effectively addresses long-standing industry pain points associated with Japanese brands, such as long lead times, severe shortages, and unstable supply.

The company provides shorter delivery cycles, more stable supply, and lower total cost of ownership, achieving “equivalent performance with worry-free supply,” and offering long-term and reliable assurance for automotive electronic water pump applications.

Call to action: Visit the official website to download the full datasheets, request free samples for validation testing, and contact the YMIN technical team for application and selection support.
