© ihs markit Teardowns | August 15, 2016
Microsoft’s Xbox One S brings significant value gains
"Even in this case, while not completely upside-down, margins are still slim once you consider all of the downstream value-add."

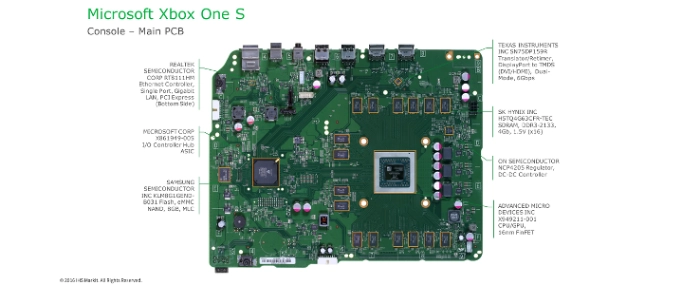

Despite a small increase in bill-of-materials cost, the new Xbox One S delivers for consumers in terms of improved performance and features, according to preliminary results from the Teardown Analysis Service at global business information provider IHS Markit. The competitive positioning game Instead of releasing a direct equivalent to the upcoming Sony PlayStation 4 Neo, Microsoft is attempting to regain the market initiative with an improved form factor, including the new UHD Blu-ray drive, small improvements to its processing capability and HDMI interface to enable 4K video support, upscaling of 4K games content and support for HDR. Microsoft will then follow this with its more powerful Project Scorpio console at the end of 2017. Microsoft now has the first mainstream games console on the market that supports both UHD Blu-ray and 4K output for streamed and disc-based video. Plus, the company is shifting all manufacture of Xbox One over to the new Xbox One S model, so it will benefit more rapidly from yield improvements and a reduction in material costs, compared to Sony with its more niche PlayStation 4 Neo offering. “The Xbox One S is a solid strategic move by Microsoft in the commercial context,” said Piers Harding-Rolls, director, games, IHS Markit. “For such a small increase in bill-of-materials cost, the new Xbox One S offers a significantly more attractive proposition to the consumer and that positions it more strongly against the PS4.”Slightly higher component costs, lower R&D The new CPU device in the Xbox One S, supplied by AMD is now fabricated by TSMC (Taiwan Semiconductor Manufacturing Company) using a 16 nanometer (nm) “FinFET” process, rather than the previous standard of 28nm technology. While this process resulted in a “die shrink” at this early stage it’s typical to have a lower yield rate, which has been built into the estimate of USD 99 versus the previous device cost of USD 76. “As the production of this device matures, and as yields rise, we can expect commensurate cost erosion,” Keller said. The hard drive in IHS Markit’s previous teardown analysis was 1 TB, which was assessed at USD 32. The configuration for the new Xbox One S analyzed by IHS Markit included a 2 TB drive, with an estimated cost of USD 55. In total, Microsoft offers three hard-drive configurations at various prices: in addition to the 2 TB drive in this teardown, there is also a version with a 500 gigabyte (GB) drive selling for USD 299 and a 1 TB drive version selling for USD 349. The new console also includes a UHD BD-ROM player, with a bill of materials (BOM) cost of USD 33.50, versus the previous USD 18 conventional Blu-Ray drive. In addition to those cost-additive factors in the console components, there were several developments that brought some of that cost back down and offset some of that increase. For example, due to deceased power consumption of the new CPU, a reduction in heatsink and fan cooling requirements was realized, resulting in a smaller and less expensive cooling solution. Incidentally, this also helped reduce the overall size of the product. Goodbye, “brick” Decreased power requirements also resulted in a smaller power supply, which not only dropped the cost, but also allowed a smaller module to be installed inside the enclosure. In fact, the Xbox One S no longer requires an external “brick” power supply, for this very reason. The enclosure requirements of the external supply were also eliminated, further reducing costs from USD 21 to USD 14. Several other design refinements were also evident, particularly in the mechanical enclosure componentry, resulting in a significantly lower parts count than the previous Xbox One. These refinements, along with the smaller enclosure, cut the total enclosure mechanicals BOM nearly in half -- from USD 36 to USD 19. In addition, memory costs have further eroded, even since March of this year, resulting in a USD 2 cost reduction. Another interesting finding was discovered in the WiFi solution. While this product, as in the previous version, includes three wireless local area network (WLAN) devices – two in the console and one in the controller -- the source for all three has shifted from Marvell Semiconductor to Mediatek. This represents a major design win for Mediatek. ----- More information can be found at © IHS Markit.
