© ifixit Teardowns | November 28, 2014

iFixit: Nexus 6 teardown

The phablet war rages on. Close on the heels of Apple's 5.5" iPhone 6 Plus, Google brings us the 5.96" Nexus 6.
With the similar shape and size, we're calling it the 6 Plus' brother from an Android mother. So aside from upping the ante on screen size, how does the Nexus 6 stack up against Apple's latest offerings?

The Nexus 6 is a solidly built phone, with high-end specs but not a lot of flashy new tech. It looks like repair was a consideration in the design, but not the top priority—while there isn't anything seriously trying to keep you out, you do have to bust through a few inconveniences in the layout to get anywhere. As a result, the Nexus 6 matched the iPhone 6 Plus' respectable 7 out of 10 repairability score, albeit for different reasons.

Teardown Highlights:

Under the moderately adhered rear cover lies a midframe secured with an absurd twenty-two T3 Torx screws that silently await our precision driver.

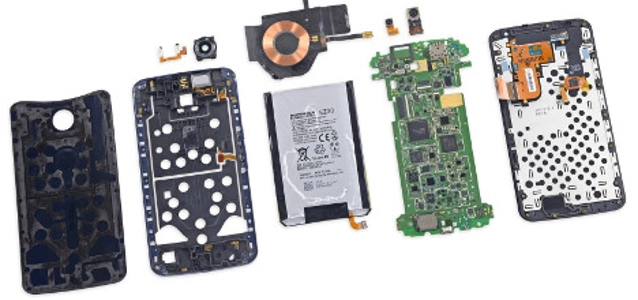

With cables decoupled, it's suddenly delightfully apparent why there were so many screws in the midframe. The Nexus 6 practically falls apart into two halves; the midframe/battery assembly, and the display/motherboard assembly.

A shiny copper coil caught our eye through the holey midframe. Turned out it was an inductive charging coil. Peeling the coil off lets us get a look at the 3.8 V, 3220 mAh (12.2 Wh) battery. It's a notch above the 11.1 Wh iPhone 6 Plus unit, but apparently the battery life doesn't benefit much.

The Nexus 6 takes the dual LED flash in a different direction—two different directions, really. The circular camera lens cover acts as a light guide for two flanking LEDs, mimicking a ring flash.

Nexus Chips:
  • Qualcomm Snapdragon 805 SoC
  • SK Hynix H9CKNNNDBTMTAR 24 Gb (3 GB) LPDDR3 RAM
  • Qualcomm PMA8084 Power Management IC
  • SanDisk SDIN9DW4-32G 32 GB eMMC NAND Flash
  • Qualcomm MDM9625M LTE Modem
  • Qualcomm WTR1625L RF Transceiver
  • Qualcomm WFR1620 Receive-Only Companion Chip
  • Texas Instruments TMS320C55 Digital Signal Processor
  • RF Micro Devices RF7389EU F14NRC2 Envelope Tracking IC
  • Broadcom BCM4356 802.11ac + Bluetooth 4.1 IC
  • Atmel MXT640T CCU 1424D TW QLR64 Touchscreen Controller
  • Dialogue iW1760B Power Supply Controller


------

All images © iFixit.
Find the full teardown here.
