Kindle Fire HDX Teardown

Kindle refreshes are in full Autumn bloom, and we got into the all-new Kindle Fire HDX 7" to see what it's made of.
Compared to the Fire HD 7" we tore down, Amazon's new, midrange 7" tablet boasts improved specs in every department—except for repair. A glued-in battery, tucked beneath a nearly-impossible-to-replace motherboard, spells doom for this device. It also earns the Fire HDX 7" a 3 out of 10 on our repairability score—the lowest score for any Kindle we’ve ever taken apart.

Teardown highlights:

© iFixit

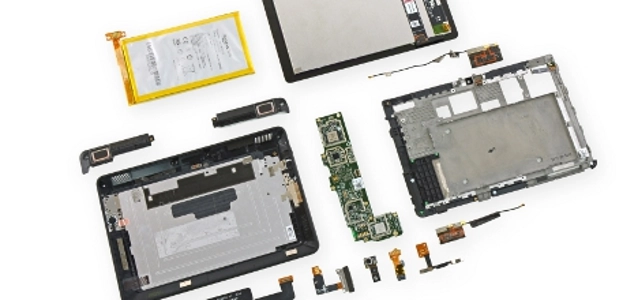

In the Kindle Fire HD of yesteryear, the rear case was a bare piece of plastic, without any additional components. This time around, all of the peripherals have been offloaded to the rear case, along with a shiny heat dissipating plate.

We're happy to see modularity in the smaller components of the HDX. The volume buttons, microphones, and headphone jack are all separate pieces. A failed component could be replaced without buying the whole assembly.

The LCD and digitizer cables are trapped between the LCD and midframe. The only way to get the connectors reseated is to remove the midframe from the display assembly.

For a device called the "Fire," we had to bring a lot of our own heat: some mighty powerful adhesive holds the battery to the plastic midframe.

© iFixit
Noteworthy silicon in the Fire HDX:
  • Snapdragon 800 SoC with 2.2 GHz quad-core CPU
  • Samsung K3QF2F200B 2 GB LPDDR3 SDRAM
  • Qualcomm PM8841 Power Management IC
  • Summit Microelectronics SMB349 Lithium-Ion/Lithium-Polymer Battery Charger
  • Maxim Integrated MAX97236 Audio Amplifier with Jack Detection
  • Qualcomm PM8941 Power Management IC
  • Qualcomm WCD9320 Audio Codec
  • Qualcomm Atheros QCA6234XH Integrated Dual-Band 2x2 802.11n + Bluetooth 4.0
  • Toshiba THGBMAG7A2JBAIR 16 GB eMMC NAND Flash
  • Synaptics S7301B Touchscreen Controller
